UniRAP: Towards Unified Part-level Physical Affordance Reasoning and Actionable Perception

From linguistic intent to pixel-level affordances and executable contact geometry—in one unified model.

Linfei Li¹ Ruining Hu¹ Lin Zhang^1,* Zhong Wang¹ Fengyi Zhang⁴ Ying Shen¹ Binqiang Wang² Xin Zhang³

¹Tongji University ²IEIT SYSTEMS ³NAIS, Neusoft Corporation

⁴The University of Queensland ^*Corresponding author

Paper coming soon Code

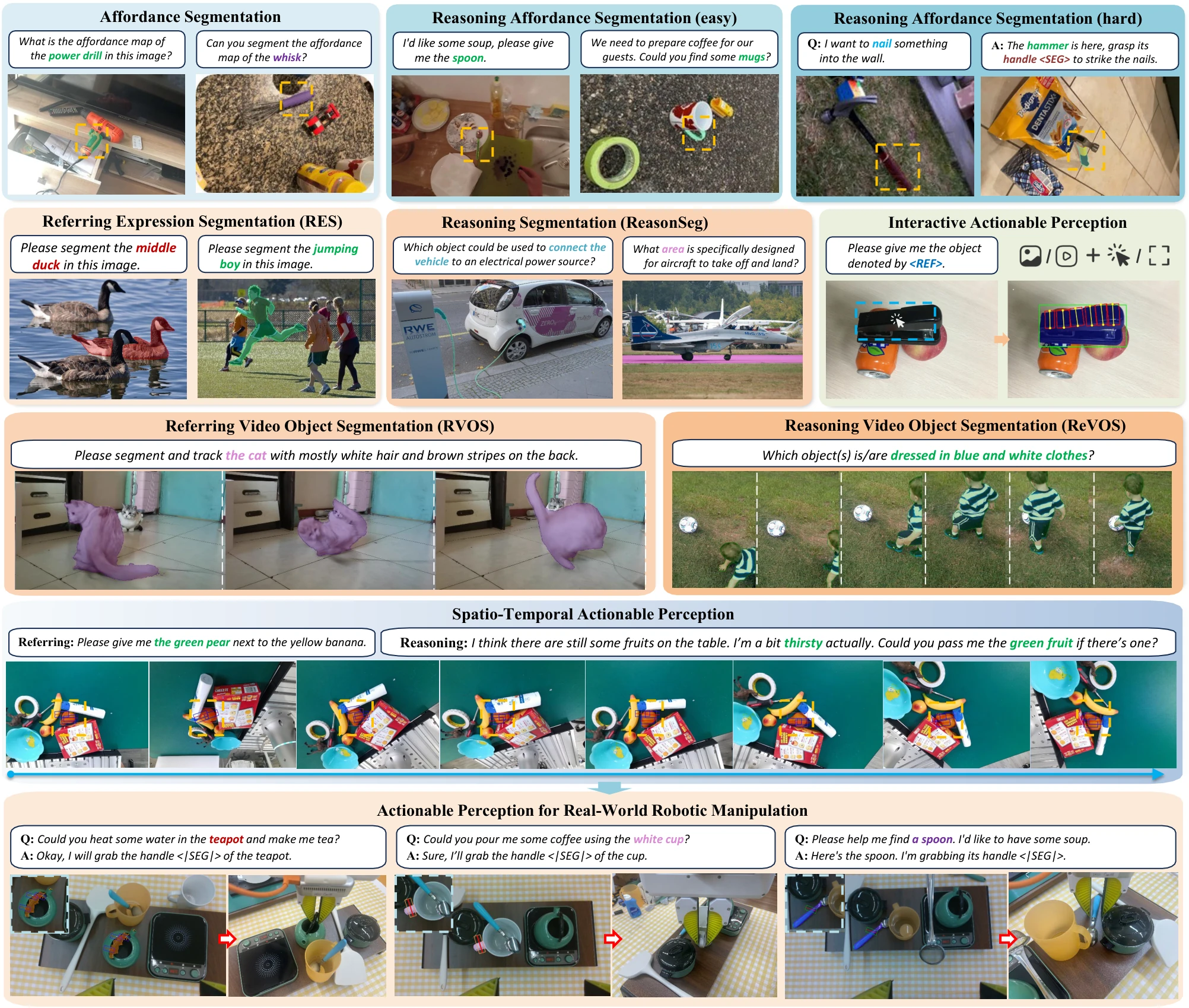

UniRAP task overview across segmentation, affordance perception, and actionable perception — UniRAP transfers generic segmentation knowledge to part-level affordance reasoning and spatiotemporally consistent actionable perception.

Video

UniRAP in action

The idea

Reason about where to interact—and how

Vision-language perception has made impressive progress in aligning language with visual observations, yet grounding high-level semantics into part-level physical interaction remains challenging. UniRAP is a unified model that maps language instructions to actionable geometric representations. Through a unified interface token mechanism, it integrates images or videos, textual instructions, and optional visual prompts into a shared spatiotemporal representation space.

A Unified Affordance Decoder jointly predicts object detections, part-level affordance masks, and 4-DoF interaction poses. A curriculum transfer strategy then adapts the model from general visual parsing to interaction-aware perception, improving data efficiency when high-quality interaction labels are scarce.

Unified interfaces

Text, points, and boxes share a token-level interface for reasoning over both images and videos.

Actionable geometry

One decoder produces bounding boxes, part-level masks, and precise 4-DoF interaction poses.

Transfer by curriculum

Four progressive stages bridge abundant segmentation data and scarce interaction annotations.

Method

A unified path from prompts to actions

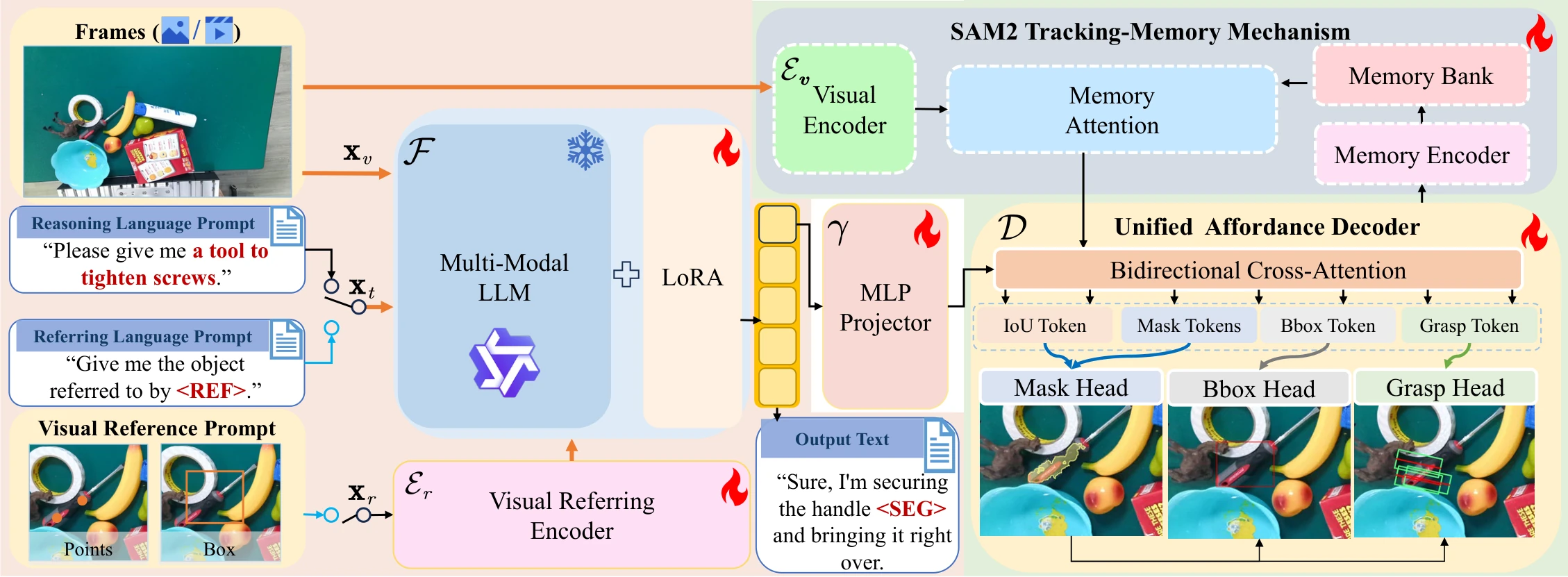

Architecture overview of the UniRAP model — Visual input, language, and optional visual references are fused through `<REF>` and `<SEG>` interfaces, then decoded into masks, detections, and 4-DoF poses.

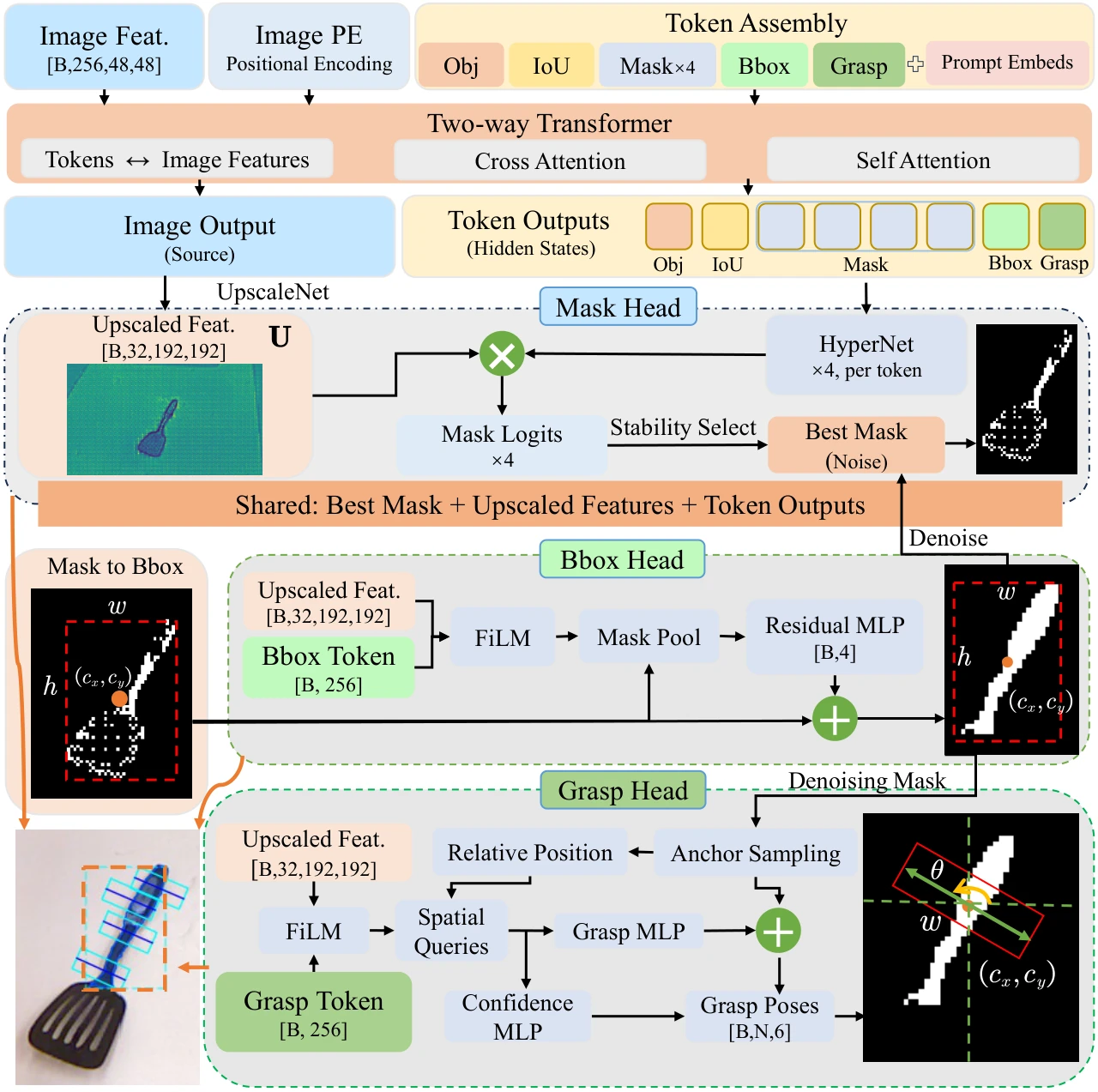

Unified Affordance Decoder

One representation, multiple granularities

The UAD reuses dense segmentation features for three coupled tasks. Mask evidence initializes region geometry; task-specific tokens condition shared visual features; consistency constraints let detection and contact prediction refine one another.

DetectionSegmentation4-DoF pose

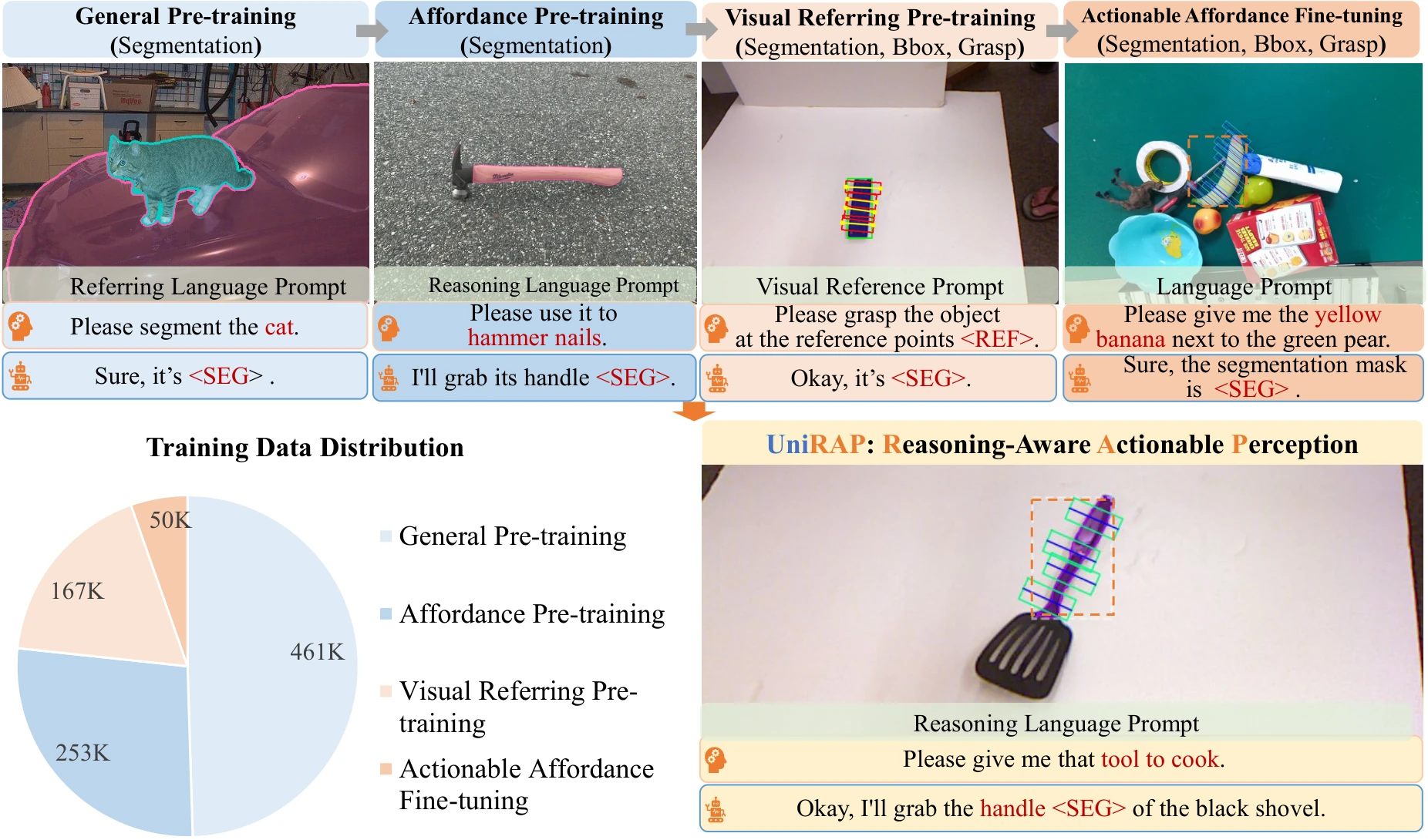

Curriculum transfer training

From seeing objects to understanding interaction

1General segmentation

2Affordance pre-training

3Visual referring pre-training

4Actionable affordance fine-tuning

Results

Strong generalization from a 3B model

UniRAP performs consistently across referring segmentation, affordance grounding, video reasoning, and fine-grained interaction prediction.

80.9RefCOCO val cIoU

64.1ReVOS overall J&F

63.3Novel-split grasp accuracy

3×Novel grasp gain over RealVLG-R1

Quantitative comparisons

Results from the paper

Gray column groups denote zero-shot benchmarks. Best results among the displayed methods are highlighted.

Referring affordance segmentation

Method	Size	HANDAL		GraspNet Seen		GraspNet Novel		3DOI
Method	Size	gIoU	cIoU	gIoU	cIoU	gIoU	cIoU	gIoU	cIoU
LISA	7B	15.4	11.8	17.7	17.7	25.2	24.1	21.5	13.7
UniPixel	7B	26.0	16.4	45.0	12.5	48.0	11.5	41.5	24.9
RAGNet	7B	60.5	60.3	63.3	64.0	45.6	33.2	37.4	37.4
UniRAP	3B	63.9	65.7	70.6	64.1	51.6	42.3	52.1	37.5

Reasoning affordance segmentation

Method	Size	HANDAL Easy		HANDAL Hard		3DOI
Method	Size	gIoU	cIoU	gIoU	cIoU	gIoU	cIoU
LISA	7B	15.5	11.9	12.3	8.1	12.3	8.1
UniPixel	7B	26.7	15.7	24.5	11.6	38.5	21.0
RAGNet	7B	58.3	58.1	58.2	57.8	38.1	39.4
UniRAP	3B	63.2	64.1	62.9	63.8	55.7	54.5

Actionable perception on RealVLG-Benchmark

Method (3B)	Seen Seg. Fβ / Grasp gAcc	Similar Seg. Fβ / Grasp gAcc	Novel Seg. Fβ / Grasp gAcc
Qwen2.5-VL + SFT	76.2 / 1.7	75.4 / 2.1	46.2 / 1.5
RealVLG-R1 (GRPO)	83.9 / 40.3	84.1 / 31.9	49.4 / 17.1
RealVLG-R1 (GSPO)	88.7 / 33.6	85.0 / 30.6	49.1 / 9.1
UniRAP	92.0 / 56.7	89.4 / 56.7	75.8 / 63.3

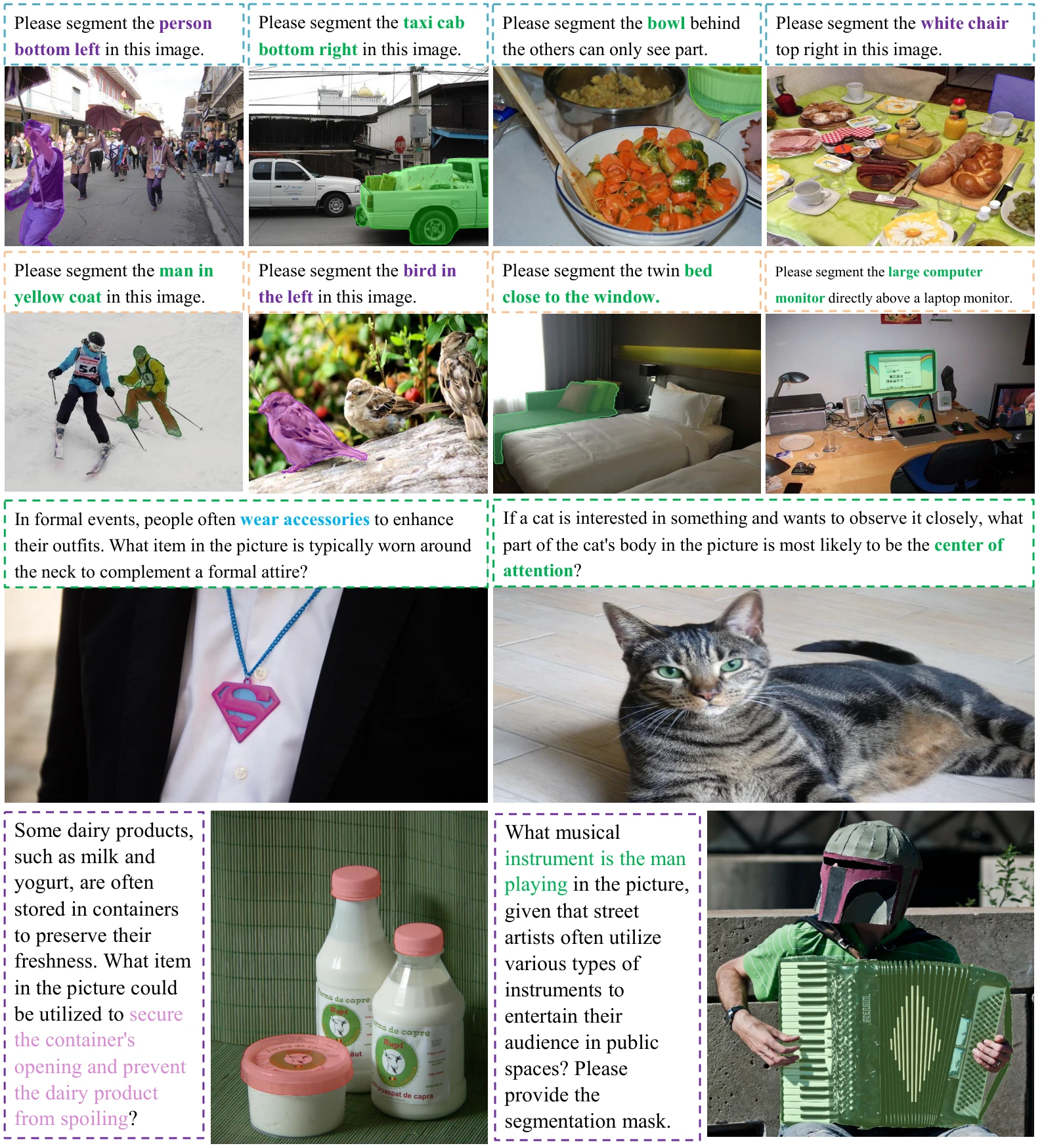

General & reasoning segmentation

UniRAP reaches state-of-the-art results on referring expression segmentation at the 3B scale and remains competitive with larger models, while maintaining strong temporal consistency for video queries.

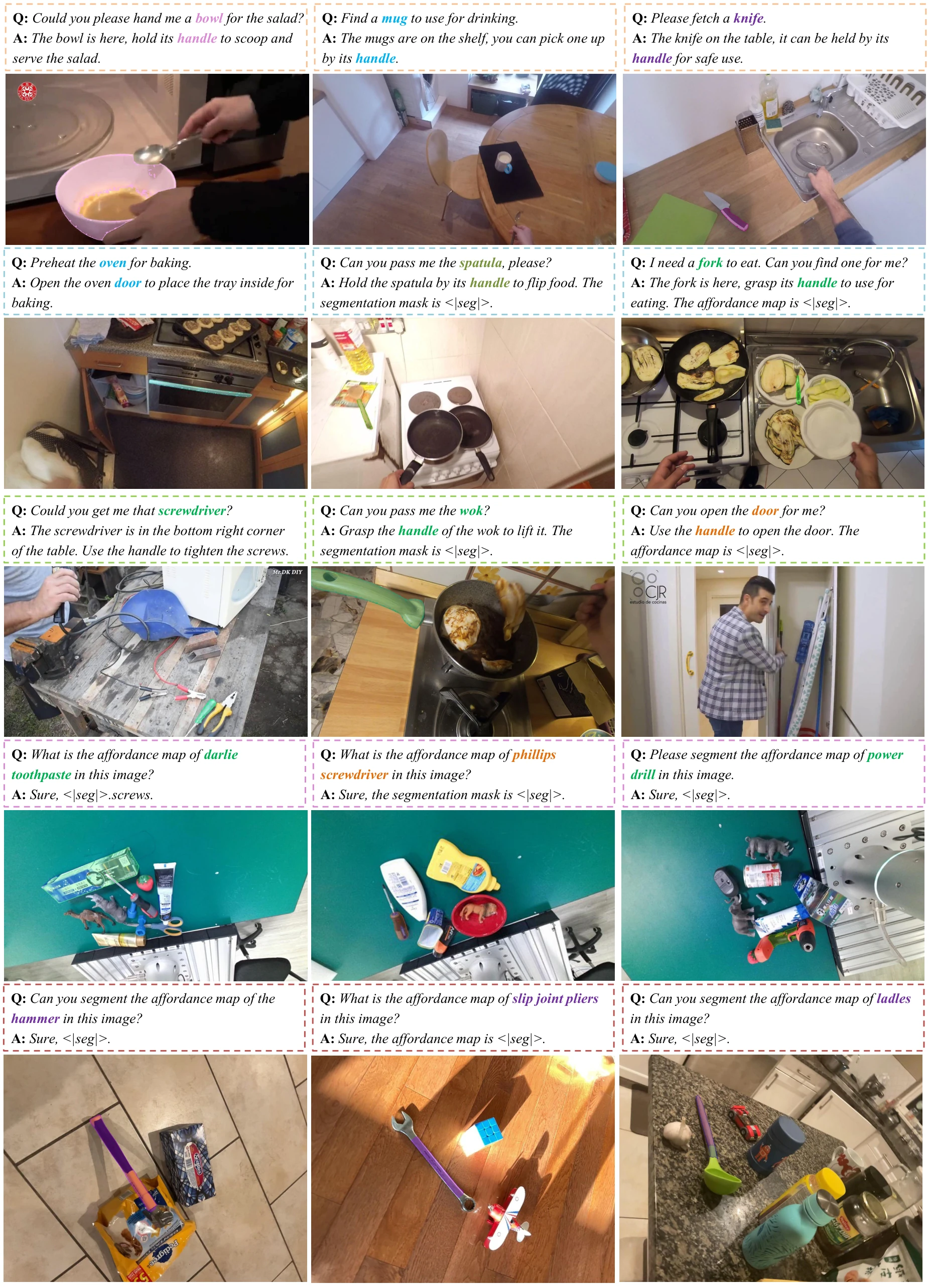

Part-level affordance grounding

On explicit and reasoning-based affordance segmentation, UniRAP improves generalization to unseen objects. On zero-shot 3DOI, it raises gIoU and cIoU by 17.6 and 15.1 points over RAGNet.

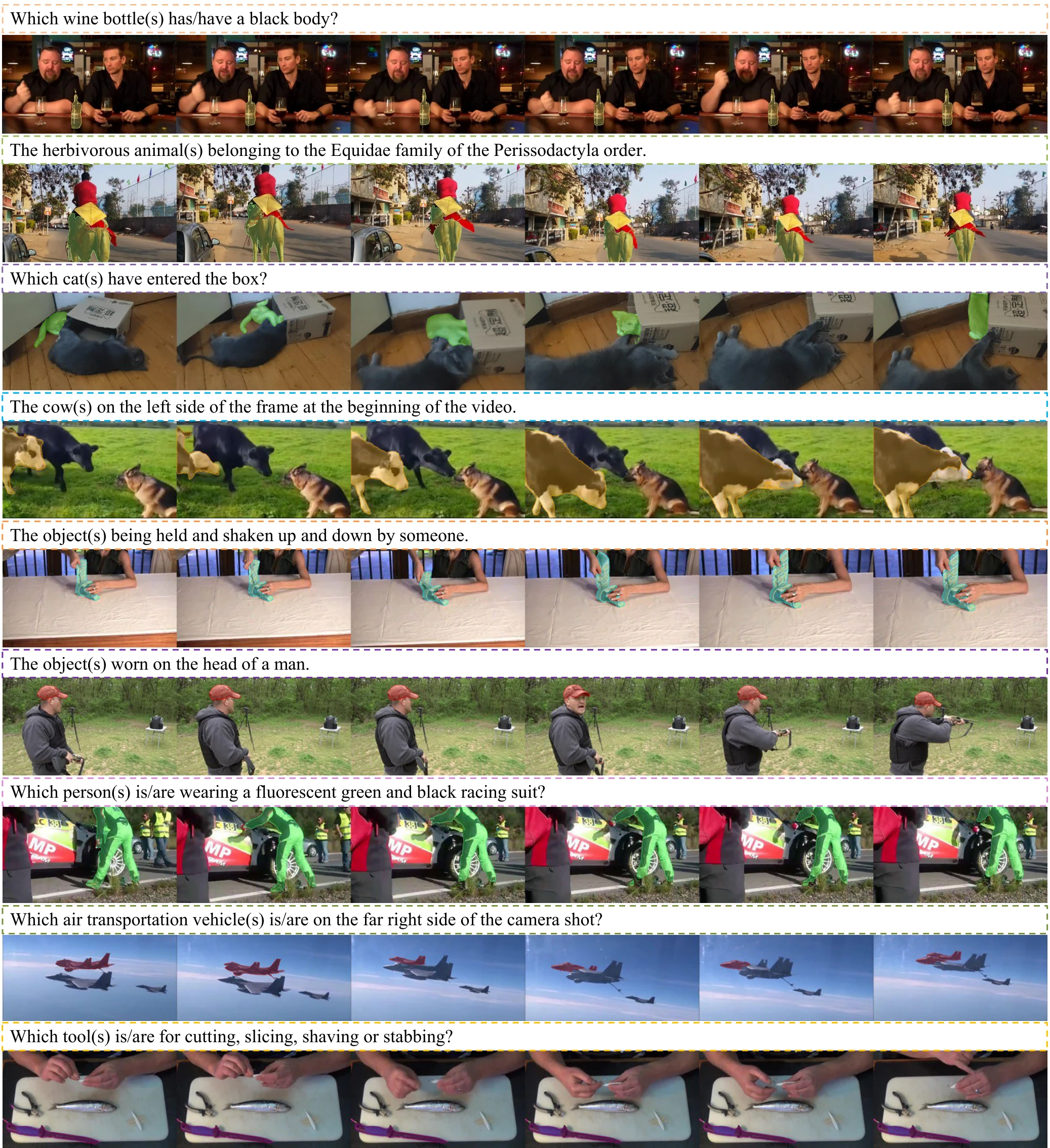

Video object segmentation results — Spatiotemporal segmentation

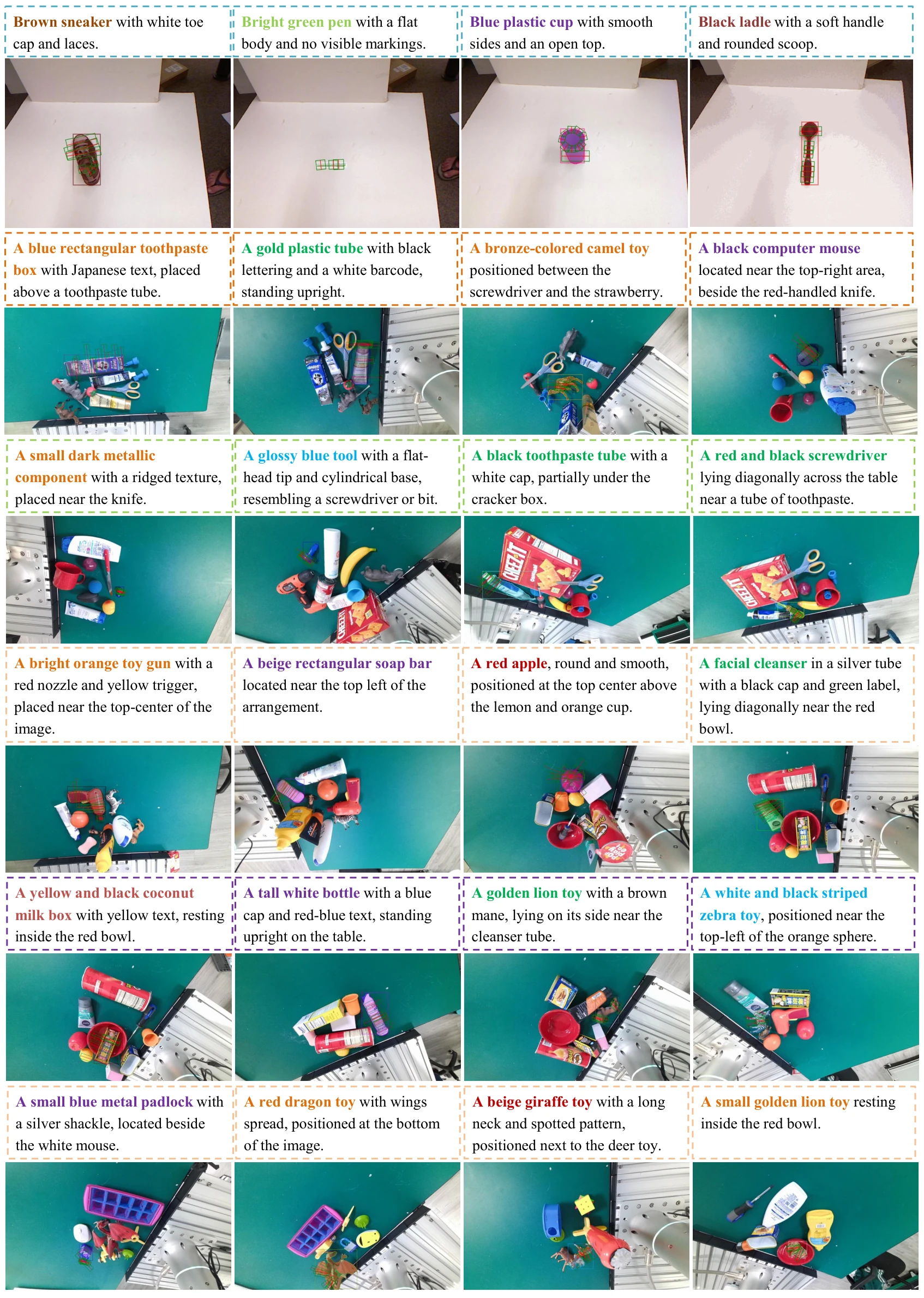

Actionable perception on RealVLG benchmark — Image actionable perception

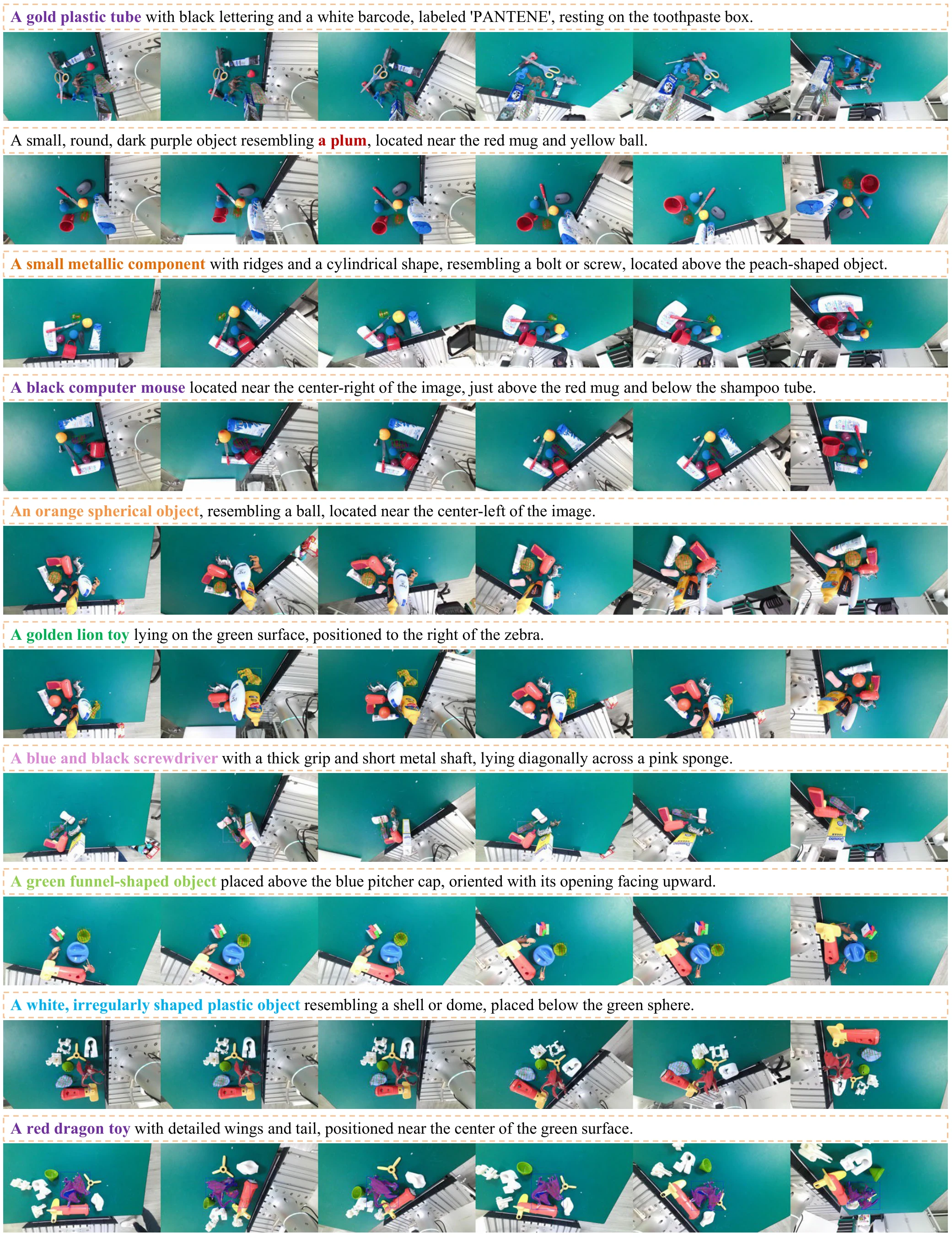

Spatiotemporal actionable perception — Video actionable perception

Dynamic examples

Image understanding that stays consistent over time

Examples extracted from the UniRAP supplementary presentation. Videos load only when they approach the viewport.

Referring video object segmentation

Referring sequence 1

Referring sequence 2

Referring sequence 3

Referring sequence 4

Referring sequence 5

Referring sequence 6

Reasoning video object segmentation

Reasoning sequence 1

Reasoning sequence 2

Reasoning sequence 3

Reasoning sequence 4

Reasoning sequence 5

Reasoning sequence 6

Reasoning sequence 7

Spatiotemporal actionable perception

Actionable sequence 1

Actionable sequence 2

Actionable sequence 3

Actionable sequence 4

Actionable sequence 5

Actionable sequence 6

Real-world experiments

Perception that can be executed

A Franka FR3 with an eye-in-hand RealSense D435i directly executes UniRAP's predicted 4-DoF poses across 13 household objects and both referring and reasoning prompts.

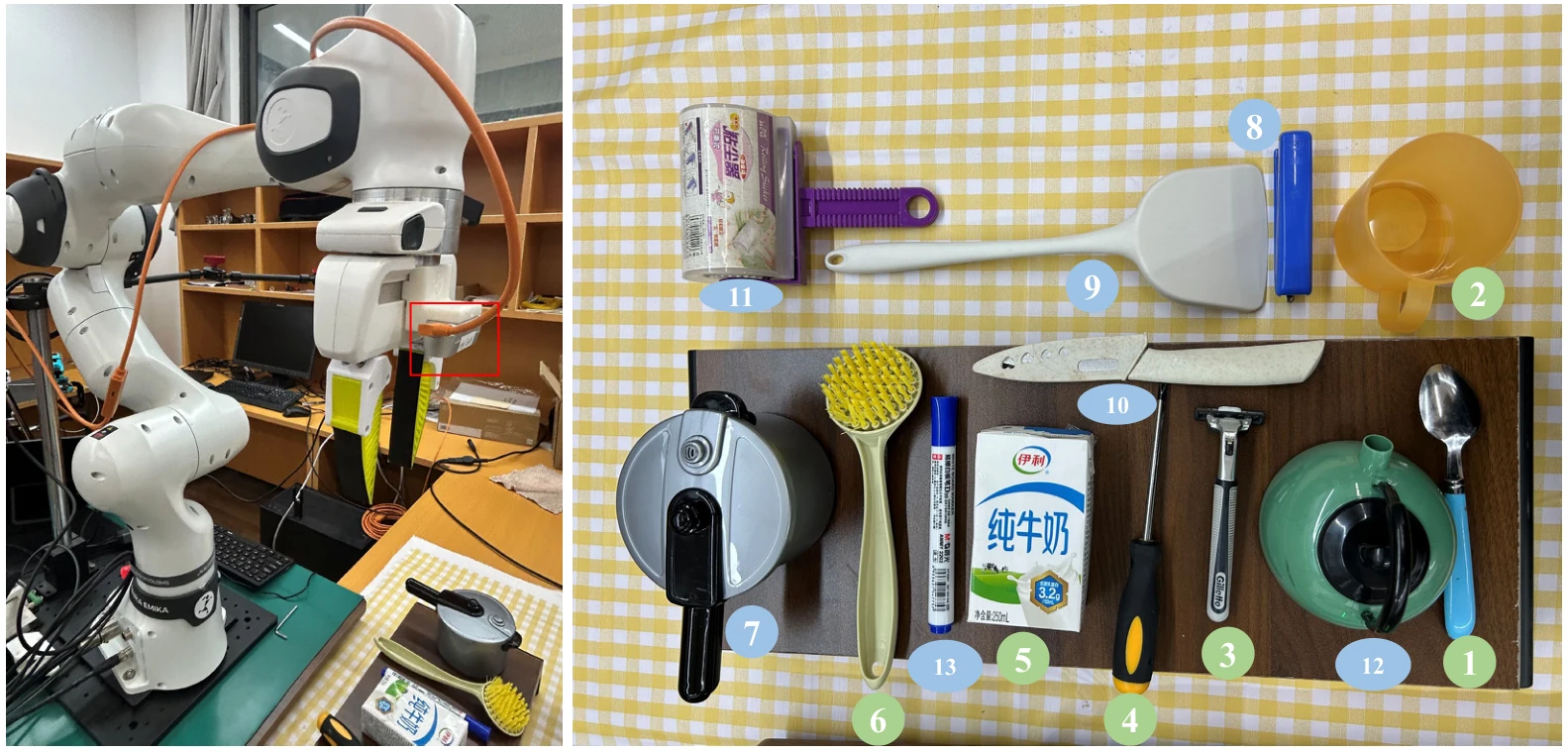

Franka FR3 real-world robotic experiment setup

+26.2%

overall grasp success rate compared with RealVLG-R1 (3B), across 10 trials per object.

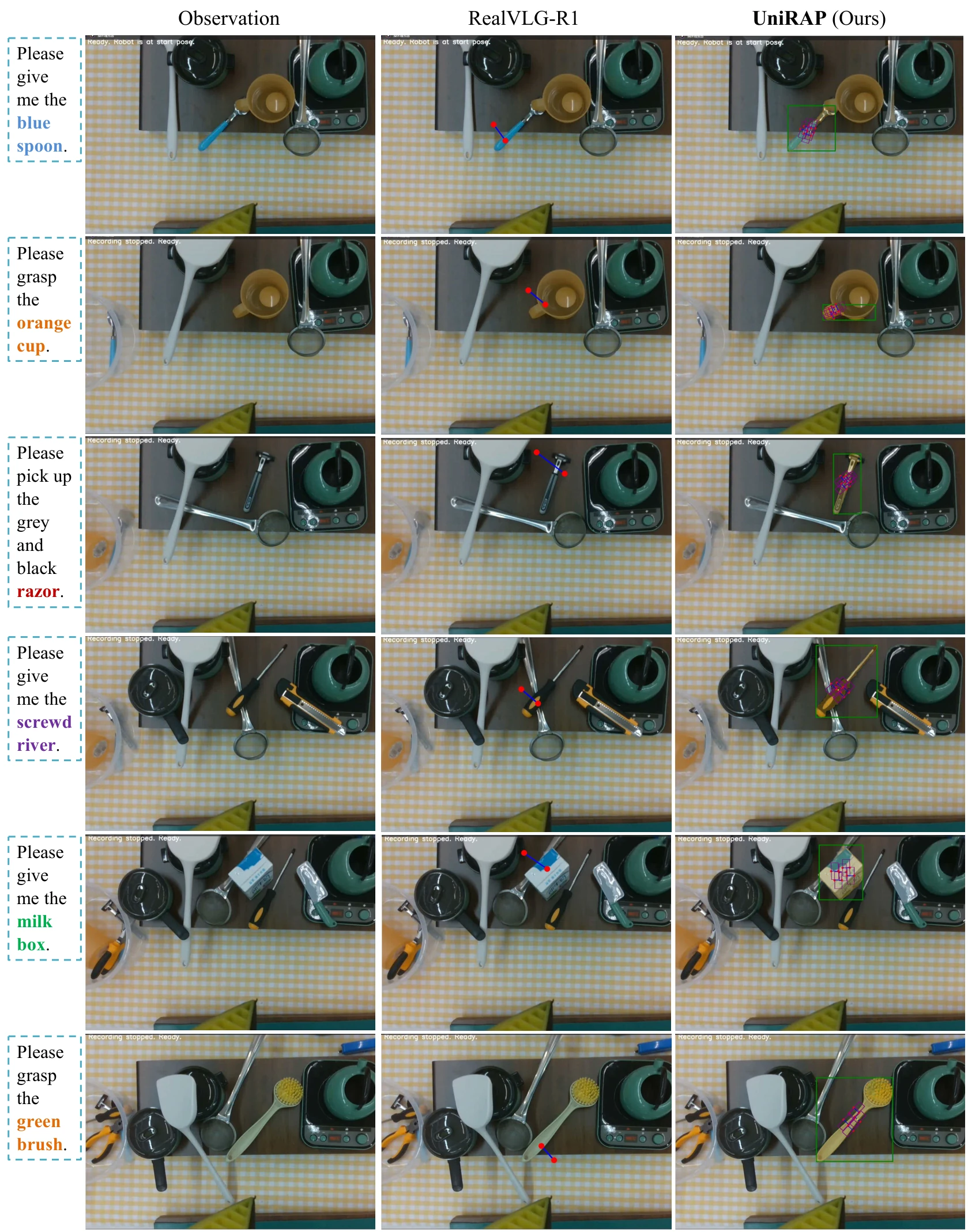

Real-world referring vision-language grasping results — Referring vision-language grasping

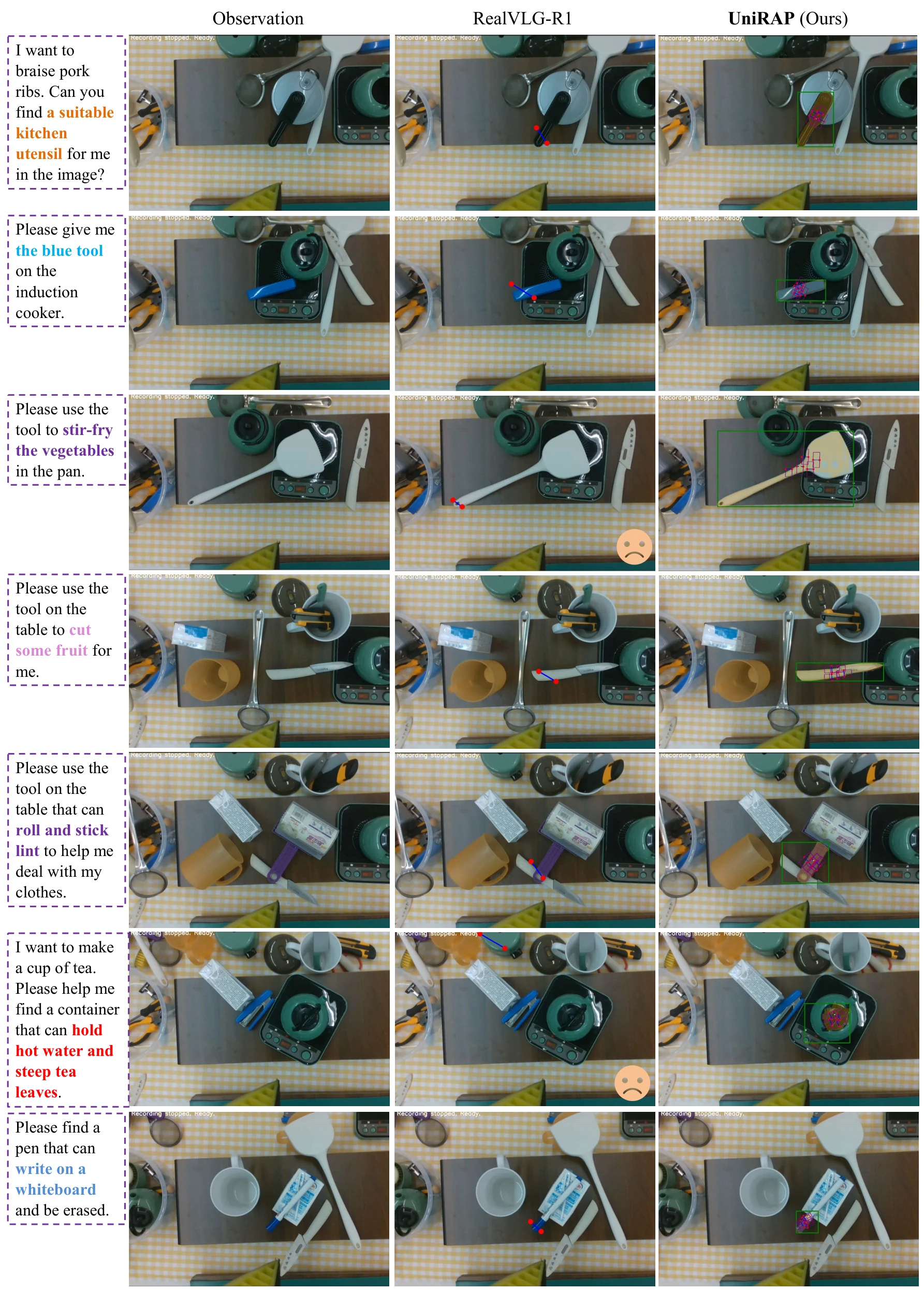

Real-world reasoning-based grasping results — Reasoning-based vision-language grasping

Referring grasping demonstrations

“Please give me the blue spoon.”

“Please grasp the orange cup.”

“Please pick up the grey and black razor.”

“Please give me the screwdriver.”

“Please give me the milk box.”

“Please grasp the green brush.”

Reasoning grasping demonstrations

Braise pork ribs → pressure cooker

Blue tool on the induction cooker → stapler

Stir-fry vegetables → shovel

Cut fruit → knife

Remove lint from clothes → rolling sticker

Make a cup of tea → teapot

Pour water from a lidded vessel → teapot

Writable and erasable on a whiteboard → marker pen
